OTP

OTP Authentication

This section covers the OTP-based authentication APIs available in SolidX.

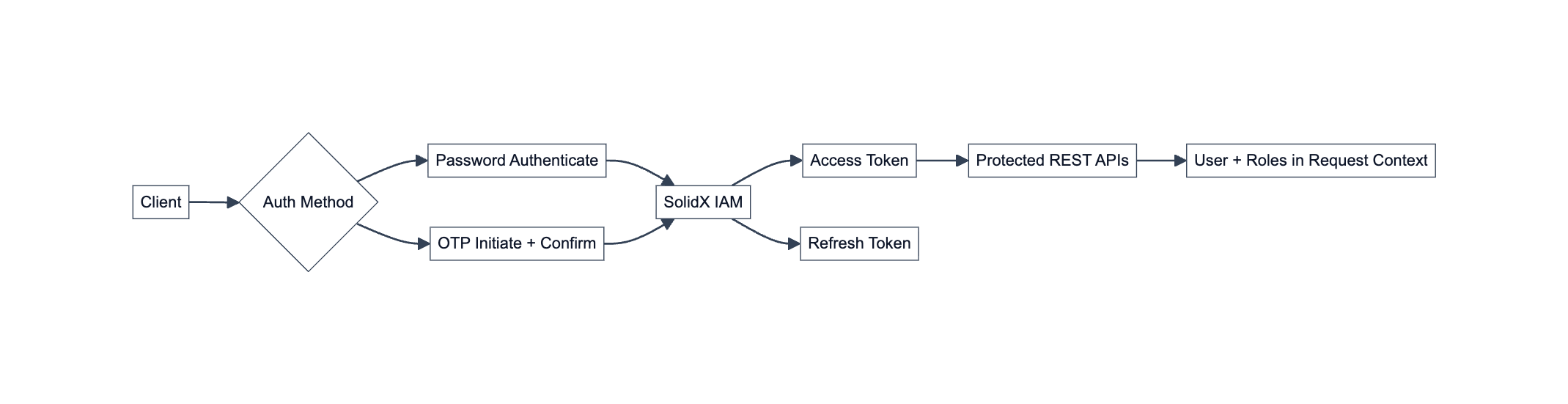

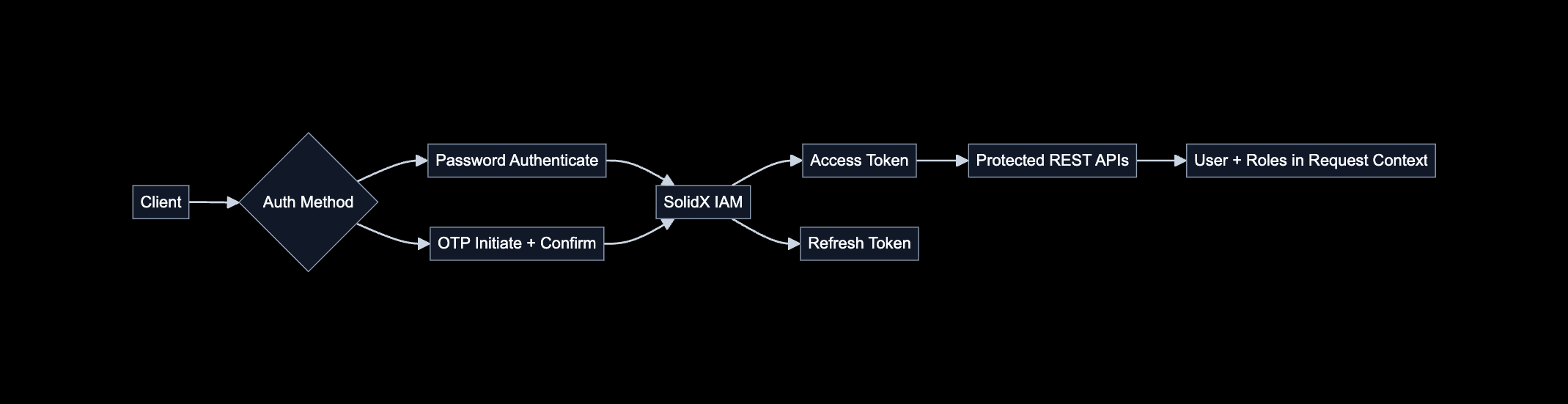

Authentication Path

The OTP endpoints handle delivery and verification of a short-lived code. After the code is confirmed, SolidX IAM returns access and refresh tokens for the authenticated session.

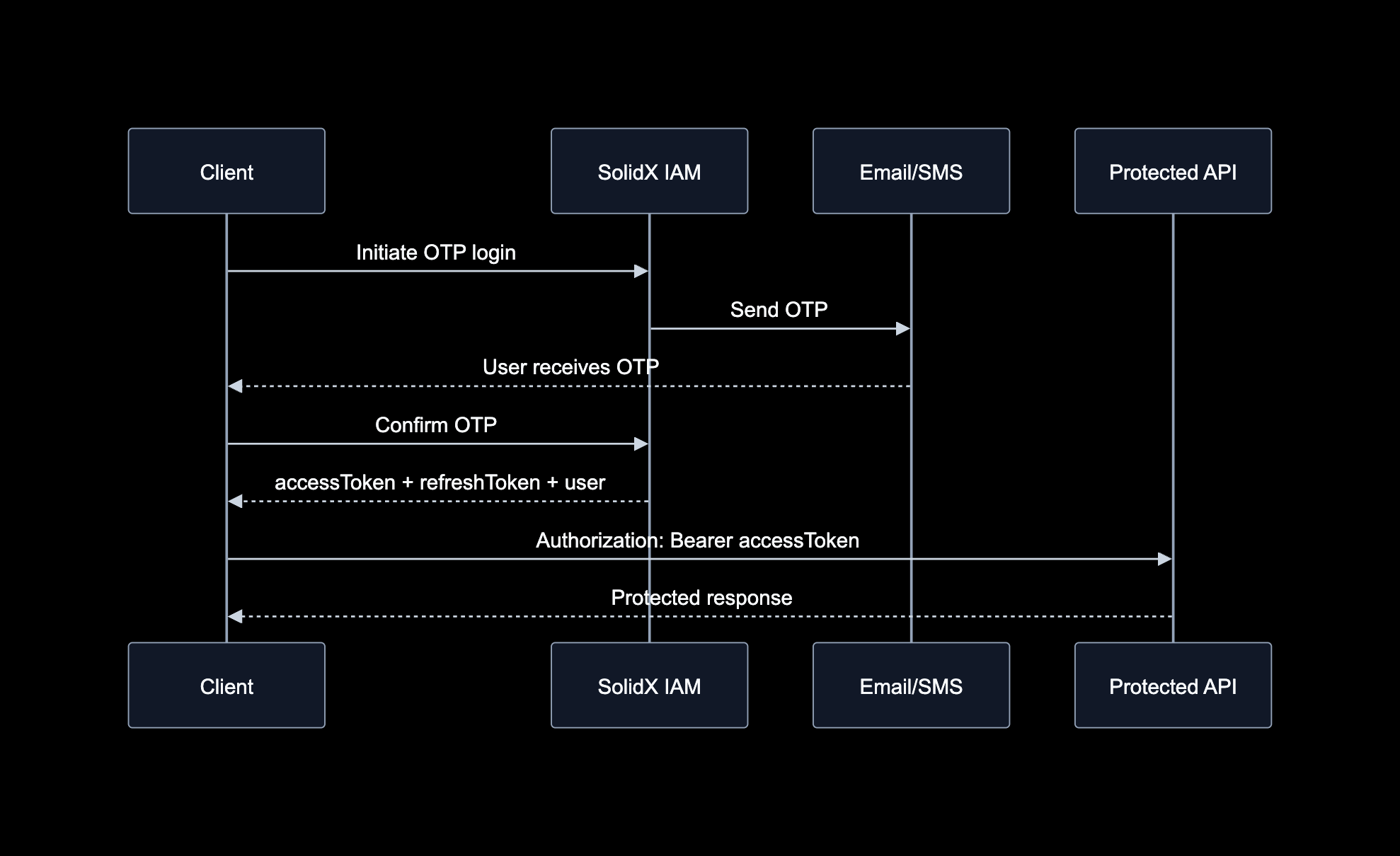

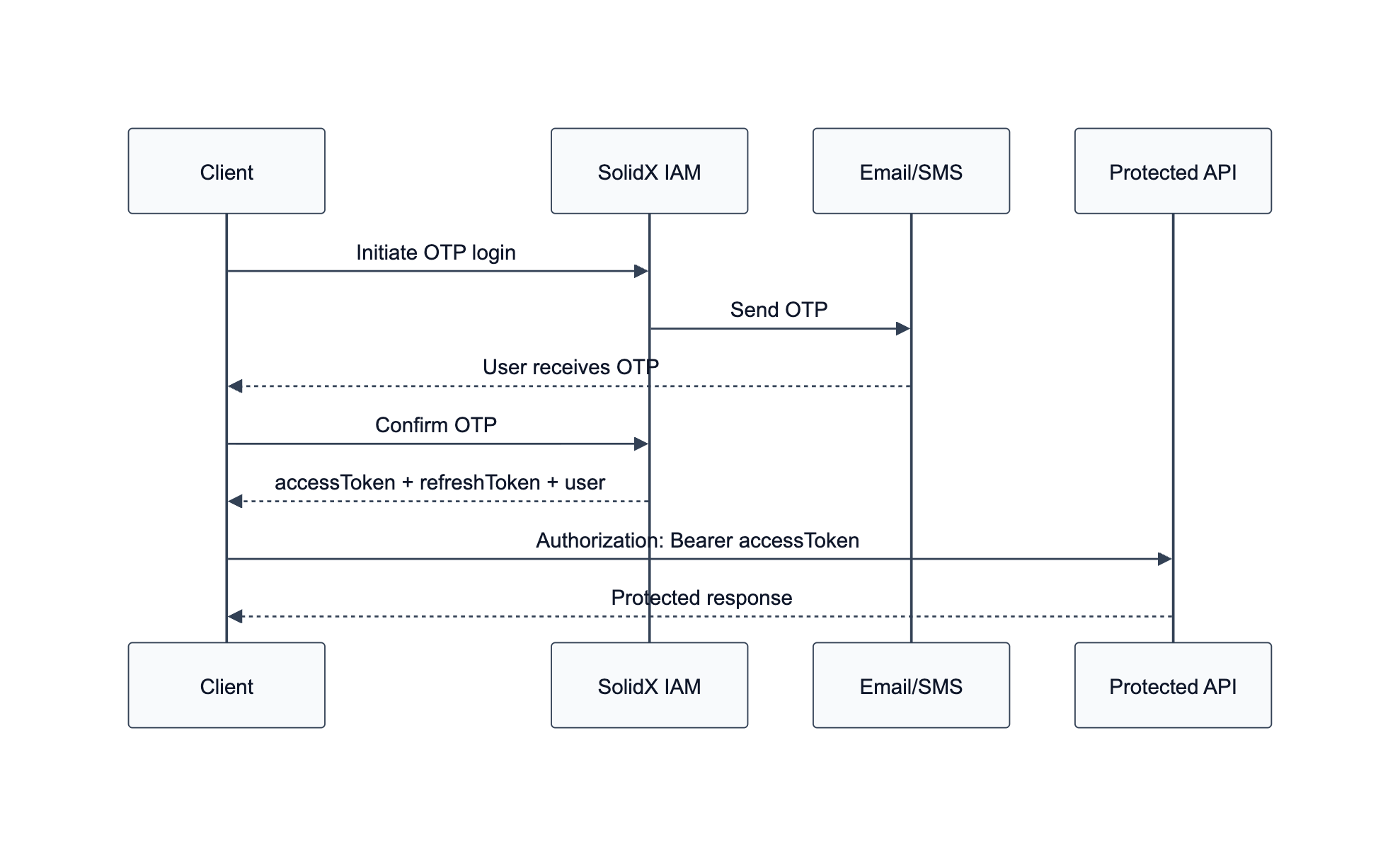

OTP Sign-In Flow

The diagram above illustrates the standard OTP authentication lifecycle. The application starts login by requesting OTP delivery for an email address or mobile number, then confirms the login with the code provided by the user. A successful confirmation response returns an access token for protected API requests and a refresh token for renewing the session through the refresh endpoint.

Implementation Overview

SolidX provides a comprehensive OTP-based authentication mechanism with the following endpoints:

1. Register
2. Login

1. Register

1.1 Initiate Registration

Allows users to register using their username, email, or mobile number through OTP verification.

The registration process is divided into two steps:

• Initiate Registration: Sends OTP to specified validation sources.
• Confirm Registration: Confirms registration with the OTP.

The validationSources field in the request body specifies which sources (email, mobile) should be validated. This can be customized via environment variables or overridden via the transactional flag in the request.

Endpoint

POST /api/iam/otp/register/initiate

Environment Variables

• IAM_PASSWORD_LESS_REGISTRATION: Enables/disables OTP registration.
• IAM_OTP_EXPIRY: OTP expiry time (default: 5 mins).
• IAM_PASSWORD_LESS_REGISTRATION_VALIDATE_WHAT: Values can be email, mobile, or both.

Content-Type: application/json

{
  "username": "string",
  "email": "[EMAIL]",
  "mobile": "string",
  "validationSources": ["email", "mobile"],
  "customPayload": {}
}

{
  "message": "OTP sent successfully"
}

1.2 Confirm Registration

Endpoint

POST /api/iam/otp/register/confirm

Content-Type: application/json

{
  "type": "email",
  "identifier": "[EMAIL]",
  "otp": "string"
}

{
  "active": true,
  "message": "User registration verified for email"
}

2. Login

2.1 Initiate Login

Allows users to log in using username, email, or mobile through OTP.

Similar to registration, the validationSources and environment variables control OTP delivery.

Endpoint

POST /api/iam/otp/login/initiate

Environment Variables

• IAM_PASSWORD_LESS_REGISTRATION: Enables/disables OTP login.
• IAM_OTP_EXPIRY: OTP expiry time (default: 5 mins).
• IAM_PASSWORD_LESS_LOGIN_VALIDATE_WHAT: What to validate during login.

Content-Type: application/json

{
  "type": "email",
  "identifier": "[EMAIL]"
}

{
  "message": "OTP sent successfully"
}

2.2 Confirm Login

Endpoint

POST /api/iam/otp/login/confirm

Content-Type: application/json

{
  "type": "email",
  "identifier": "[EMAIL]",
  "otp": "string"
}

{
  "accessToken": "<ACCESS_TOKEN>",
  "refreshToken": "<REFRESH_TOKEN>",
  "user": {
    "id": 1,
    "username": "[USERNAME]",
    "email": "[EMAIL]",
    "mobile": "string",
    "lastLoginProvider": "otp",
    "roles": ["User", "Admin"]
  }
}

What Happens After Login?

After successful OTP authentication, the client receives an access token and refresh token. Use the access token in the Authorization: Bearer <ACCESS_TOKEN> header for protected APIs. Use the refresh token only with the refresh endpoint, and store it as a sensitive credential rather than regular client-side state.
