Institute Onboarding

Overview

Below are the key features related to managing educational institutes within the Fees Portal Platform:

Complete institute profile management (name, address, contact details)
Payment gateway configuration per institute
Custom branding and theming for student portals
Support personnel information setup
Multi-tenant architecture supporting multiple institutes i.e (Institute Admins can only see/ manage their own institute data)

Roles Involved

Platform Admin
Institute Admin

You can refer to the User Roles & Responsibilities in the Product Overview for more details on these roles.

Data Models Involved

This section describes the data models you need to implement this feature.

1. Institute Model

What it represents: Your educational institution (school, college, university) that will collect fees through the portal.

Basic Information

Field	Required?	Description	Example
Institute Name	Yes	The official name of your institution. Must be unique.	"Delhi Public School"
Logo	Yes	Your institution's logo (image file, max 5MB)	Upload .jpg or .png file
Description	No	Brief description of your institution	"Leading CBSE school in New Delhi"
Institute Address	No	Complete postal address	"Delhi Public School, Mathura Road, New Delhi 110003"

Contact Details

Field	Required?	Description	Example
Support Email	Yes	Email where parents/students can reach for help	support@dpsschools.edu.in
Support Mobile	Yes	10-digit contact number for support	9876543210
Email Domain	No	Your institution's email domain (for user validation)	dpsschools.edu.in

Payment Gateway Configuration

These credentials will be provided by your payment gateway provider. You'll need them to process payments.

Field	Required?	Description
Cust Code	Yes	Your unique merchant ID from the payment gateway
Access Key	Yes	API access key for authentication
Access Secret	Yes	Secret key for secure authentication (keep confidential)
Cust UserID	Yes	Your customer user identifier

Website & Portal Settings

Field	Required?	Description	Example
Hosted Page Prefix	Yes	Unique subdomain prefix for the institute's payment portal. No two institutes can share the same prefix.	If set to `delhi`, the portal URL becomes `delhi.<your-configured-domain>` (e.g., `delhi.dpsschools.edu.in`). The base domain is configured via environment variables.
Status	Auto-set	Portal status (starts as "InActive", activate when ready)	InActive → Active

Legal & Content (Optional)

Field	Required?	Description
GST Number	No	Your institution's GST registration number
Terms and Conditions	No	Legal terms users must accept during payment
FAQs	No	Frequently asked questions to help users
Privacy Policy	No	Your data privacy policy
Institute Brochure	No	Downloadable brochure document (max 5MB)
Institute Intro Video	No	Introduction video about your institution (max 5MB)

What you can do with this model:

Each institute can manage multiple fee types (tuition, bus fees, etc.)
Each institute can have multiple admin users
When you delete an institute, all its fee types and users are automatically removed

2. Fee Type Model

What it represents: Different categories of fees your institution collects (e.g., Tuition Fees, Bus Fees, Hostel Fees, Library Fees, Sports Fees).

Basic Information

Field	Required?	Description	Example
Fee Type	Yes	Name of this fee category	"Tuition Fees", "Bus Fees", "Lab Fees"

Payment Rules

Field	Required?	Description	When to Use
Part Payment Allowed	Yes	Can students pay in installments?	• Select Yes for expensive fees (like tuition) • Select No for smaller fees that should be paid in full

Late Payment Policy

Configure how you want to handle late payments:

Field	Required?	Description	Options & Examples
Late Payment Fees Type	No	How to calculate late fees	• None: No penalty • Percent: Percentage of amount (e.g., 5% of ₹10,000 = ₹500) • Absolute: Fixed amount (e.g., ₹100 flat fee)
Late Payment Fees	No	The fee amount or percentage	• If Percent: Enter 5 (for 5%) • If Absolute: Enter 100 (for ₹100)

Important Notes:

Uniqueness Rule: You cannot create duplicate fee types for the same institute. For example:

Valid: ABC School can have "Tuition Fees"
Valid: XYZ School can also have "Tuition Fees"
Invalid: ABC School cannot have two "Tuition Fees" entries

Auto-Generated Field: The system automatically creates a unique identifier by combining the fee type and institute name (e.g., "tuition-fees-abc-school"). You don't need to enter this.

Decision Guide:

When to allow partial payments:

Yes: Large annual fees (tuition, annual bus fees)
Yes: Fees where families might need flexibility
No: Small one-time fees (exam fees, certificate fees)
No: Fees that must be paid upfront (admission fees)

Choosing a late fee strategy:

None: Good for short-term collections where you follow up personally
Percent: Fair for larger amounts (late fee scales with amount owed)
Absolute: Simple and predictable for any amount

3. Institute User Model

What it represents: Administrative staff who will manage the fees portal for your institution.

Basic Information

Field	Required?	Description	Example
Email	Yes	Login email address (must be unique)	admin@dpsschools.edu.in
Password	Yes	Secure login password	Set during user creation
First Name	Yes	User's first name	Rajesh
Last Name	Yes	User's last name	Sharma

Role & Access

Field	Required?	Description	Options
User Type	Yes	What role should this user have?	Institute Admin (readonly and defaulted)

Understanding User Roles:

Institute Admin - Choose this for regular staff managing a single institution

Can: Create and manage fee types for their institution
Can: Create payment collection requests
Can: Manage student records
Cannot: Create new institutions
Cannot: Access other institutions' data
Cannot: Change system settings

Who needs access?

Typical users you'll create:

Principal or Admin Office staff → Institute Admin
Accounts department staff → Institute Admin
Fee collection desk staff → Institute Admin

How These Models Connect

Understanding the relationships between your data:

Your Institution
  ├── Collects multiple types of fees
  │   └── Example: Tuition, Bus, Hostel, Lab, Sports fees
  │
  └── Has multiple admin users managing it
      └── Example: Principal, Accountant, Desk Staff

Each Fee Type
  └── Belongs to one institution
      └── Your "Tuition Fees" is separate from another school's "Tuition Fees"

Each Institute Admin User
  └── Manages one institution
      └── Cannot access other institutions' data

Building the Data Models

This section provides step-by-step instructions for creating the Institute, Institute User, and Fee Type models using SolidX. Follow these instructions to implement the data models discussed in the previous section.

New to the Module Builder?

If you're unfamiliar with how modules, models, and fields work in SolidX, we recommend reviewing the Module Builder documentation first. It covers:

Module Management - Creating and configuring modules
Model Management - Creating models and understanding model settings
Field Management - Understanding field types and configuration options

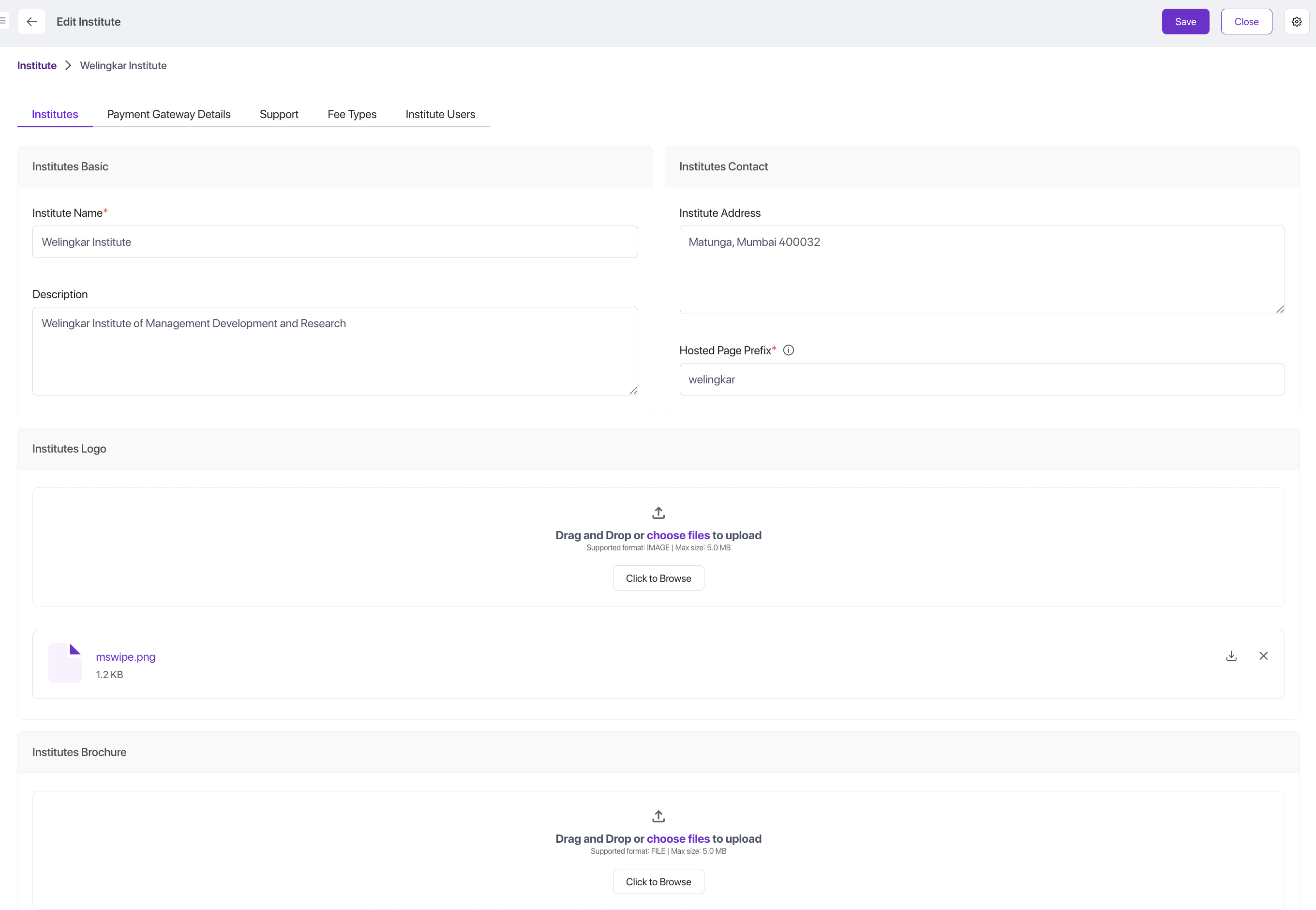

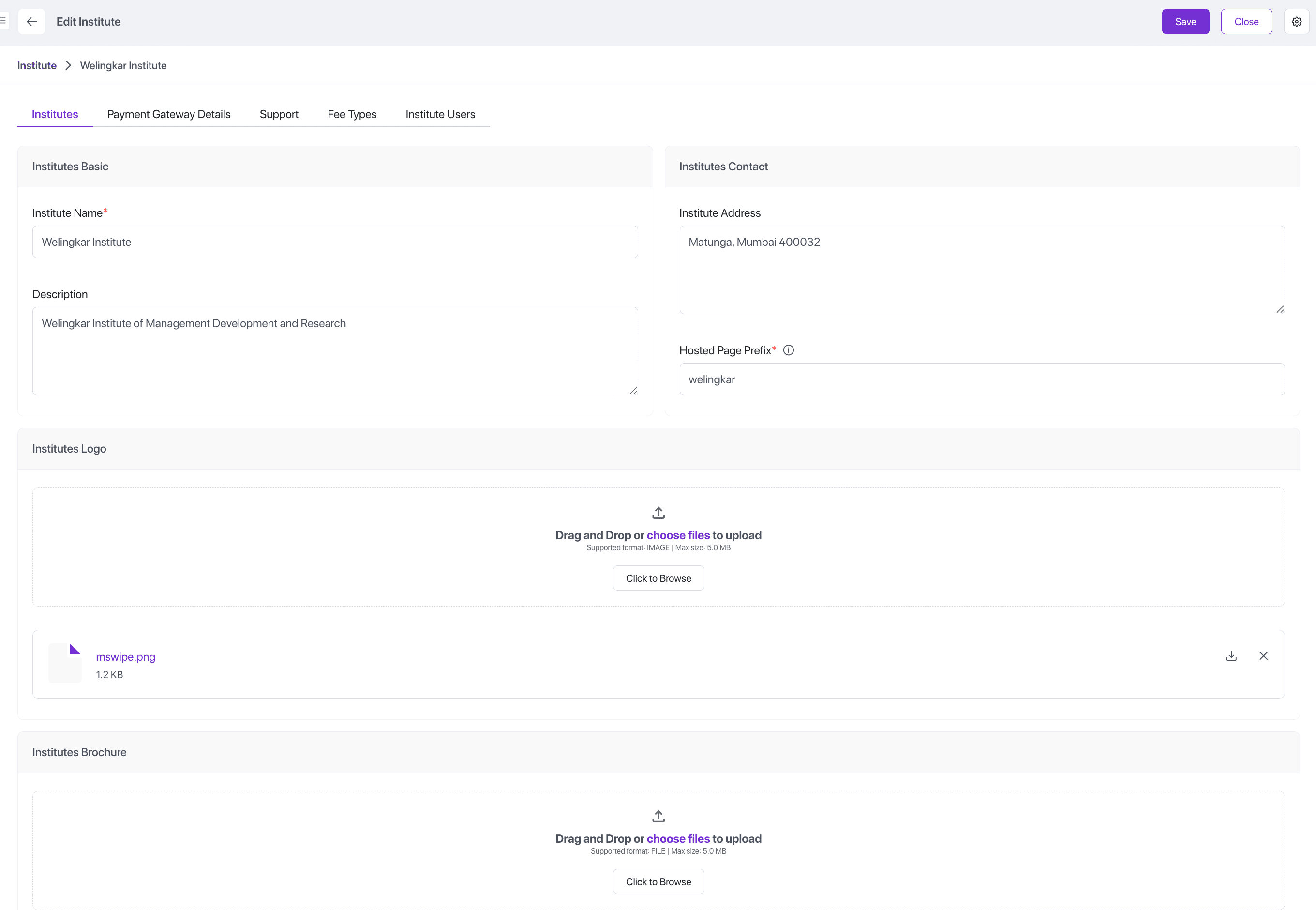

1. Creating the Institute Model

Navigate to the model creation interface in SolidX and configure as follows:

Model Configuration

Setting	Value
Singular Name	institute
Plural Name	institutes
Display Name	Institute
Description	The institute name...
Data Source	default
Data Source Type	postgres
Table Name	fees_portal_institute
Enable Audit Tracking	✓ Yes
Enable Soft Delete	☐ No
Draft Publish Workflow	☐ No
Internationalization	☐ No
Is Child Model	☐ No

Field Definitions

Create the following fields in the order listed:

Field 1: Institute Name

Attribute	Value
Name	instituteName
Display Name	Institute Name
Type	Short Text
Required	✓ Yes
Unique	✓ Yes
Index	✓ Yes
Is User Key	✓ Yes
Enable Audit Tracking	✓ Yes

Field 2: Logo

Attribute	Value
Name	logo
Display Name	Logo
Type	Media (Single)
Media Types	image
Media Max Size (KB)	5120
Required	✓ Yes
Storage Provider	default-filesystem

Field 3: Description

Attribute	Value
Name	description
Display Name	Description
Type	Long Text
Required	☐ No

Field 4: Payment Gateway Merchant ID

Attribute	Value
Name	paymentGatewayMerchantId
Display Name	Cust Code
Type	Short Text
Required	✓ Yes
Unique	✓ Yes
Enable Audit Tracking	✓ Yes

Field 5: Payment Gateway Access Key

Attribute	Value
Name	paymentGatewayAccessKey
Display Name	Access Key
Type	Short Text
Required	✓ Yes
Unique	✓ Yes
Enable Audit Tracking	✓ Yes

Field 6: Payment Gateway Access Secret

Attribute	Value
Name	paymentGatewayAccessSecret
Display Name	Access Secret
Description	Access Secret Key
Type	Short Text
Required	✓ Yes
Enable Audit Tracking	✓ Yes

Field 7: Institute Address

Attribute	Value
Name	instituteAddress
Display Name	Institute Address
Type	Long Text
Required	☐ No

Field 8: Fee Types Relation

Attribute	Value
Name	feeTypes
Display Name	FeeTypes
Description	FeeTypes
Type	Relation
Relation Type	One-to-Many
Related Model	feeType
Related Module	fees-portal
Related Field	institute
Create Inverse	✓ Yes
Cascade	cascade
Enable Audit Tracking	✓ Yes

Field 9: Institute Users Relation

Attribute	Value
Name	instituteUsers
Display Name	InstituteUsers
Description	InstituteUsers
Type	Relation
Relation Type	One-to-Many
Related Model	instituteUser
Related Module	fees-portal
Related Field	institute
Create Inverse	✓ Yes
Cascade	cascade
Enable Audit Tracking	✓ Yes

Field 10: Institute Brochure

Attribute	Value
Name	instituteBrochure
Display Name	Institute Brochure
Type	Media (Single)
Media Types	file
Media Max Size (KB)	5120
Required	☐ No
Storage Provider	default-filesystem

Field 11: Institute Intro Video

Attribute	Value
Name	instituteIntroVideo
Display Name	Institute Intro Video
Type	Media (Single)
Media Types	video
Media Max Size (KB)	5120
Required	☐ No
Storage Provider	default-filesystem

Field 12: Support Email

Attribute	Value
Name	supportEmail
Display Name	Support Email
Type	Short Text
Required	✓ Yes
Enable Audit Tracking	✓ Yes

Field 13: Support Mobile

Attribute	Value
Name	supportMobile
Display Name	Support Mobile
Type	Short Text
Min Length	10
Max Length	10
Required	✓ Yes
Enable Audit Tracking	✓ Yes

Field 14: GST

Attribute	Value
Name	gst
Display Name	GST
Type	Short Text
Required	☐ No
Enable Audit Tracking	✓ Yes

Field 15: Terms and Conditions

Attribute	Value
Name	tnC
Display Name	Terms and Conditions
Type	Rich Text
Required	☐ No

Field 16: FAQs

Attribute	Value
Name	faqs
Display Name	FAQS
Type	Rich Text
Required	☐ No

Field 17: Privacy Policy

Attribute	Value
Name	privacyPolicy
Display Name	Privacy Policy
Type	Rich Text
Required	☐ No

Field 18: Email Domain

Attribute	Value
Name	emailDomain
Display Name	Email Domain
Type	Short Text
Required	☐ No
Enable Audit Tracking	✓ Yes

Field 19: Customer User ID

Attribute	Value
Name	custUserId
Display Name	Cust UserID
Description	Customer UserID
Type	Short Text
Required	✓ Yes
Enable Audit Tracking	☐ No

Field 20: Hosted Page Prefix

Attribute	Value
Name	hostedPagePrefix
Display Name	Hosted Page Prefix
Description	Final domain: hostedPagePrefix-baseSuffix.subdomain
Type	Short Text
Required	✓ Yes
Unique	✓ Yes
Enable Audit Tracking	✓ Yes

Field 21: Status

Attribute	Value
Name	status
Display Name	Status
Description	Workflow field used to track the workflow status of this Institute.
Type	Selection (Static)
Default Value	InActive
Selection Values	InActive:InActive, Active:Active
Value Type	string
Index	✓ Yes
Enable Audit Tracking	✓ Yes
Multi-Select	☐ No

2. Creating the Fee Type Model

Model Configuration

Setting	Value
Singular Name	feeType
Plural Name	feeTypes
Display Name	Fee Type
Description	Model used to capture different fee types that a school, institute might use.
Data Source	default
Data Source Type	postgres
Table Name	fees_portal_fee_type
Enable Audit Tracking	✓ Yes
Enable Soft Delete	☐ No
Draft Publish Workflow	☐ No
Internationalization	☐ No
Is Child Model	☐ No

Field Definitions

Field 1: Fee Type

Attribute	Value
Name	feeType
Display Name	Fee Type
Description	The actual fee type. Eg. Tuition Fees, Bus Fees
Type	Short Text
Required	✓ Yes
Is User Key	✓ Yes
Enable Audit Tracking	✓ Yes

Field 2: Institute Relation

Attribute	Value
Name	institute
Display Name	Institute
Type	Relation
Relation Type	Many-to-One
Related Model	institute
Related Module	fees-portal
Related Field	feeTypes
Create Inverse	✓ Yes
Cascade	cascade
Required	✓ Yes
Enable Audit Tracking	✓ Yes

Field 3: Part Payment Allowed

Attribute	Value
Name	partPaymentAllowed
Display Name	Part Payment Allowed
Type	Boolean
Required	✓ Yes
Enable Audit Tracking	✓ Yes

Field 4: Late Payment Fees Type

Attribute	Value
Name	latePaymentFeesType
Display Name	Late Payment Fees Type
Type	Selection (Static)
Default Value	None
Selection Values	None:None, Percent:Percent, Absolute:Absolute
Value Type	string
Enable Audit Tracking	✓ Yes
Multi-Select	☐ No

Field 5: Late Payment Fees

Attribute	Value
Name	latePaymentFees
Display Name	Late Payment Fees
Type	Decimal
Default Value	0
Required	☐ No
Enable Audit Tracking	✓ Yes

Field 6: Fee Type User Key (Computed)

Attribute	Value
Name	feeTypeUserKey
Display Name	Fee Type User Key
Description	Concatenation of fee type and institute name
Type	Computed
Computed Value Type	string
Value Provider	ConcatEntityComputedFieldProvider
Provider Context	`{"fields": ["feeType", "institute.instituteName"], "separator": "-", "slugify": true}`
Trigger Operations	before-insert
Trigger Model	feeType
Trigger Module	fees-portal
Required	✓ Yes
Unique	✓ Yes
Is User Key	✓ Yes

3. Creating the Institute User Model

Why is this a child model?

The Institute User extends SolidX's built-in User model, inheriting standard fields like email, password, first name, and last name. The child model adds only the fields specific to this application (user type and institute relation). For a deeper look at how child user models work — including overriding user creation logic and backend customization — see Extending Users.

Model Configuration

Setting	Value
Singular Name	instituteUser
Plural Name	instituteUsers
Display Name	Institute User
Description	This table allows us to store institute user records
Data Source	default
Data Source Type	postgres
Table Name	fees_portal_institute_user
Enable Audit Tracking	✓ Yes
Enable Soft Delete	☐ No
Draft Publish Workflow	☐ No
Internationalization	☐ No
Is Child Model	✓ Yes
Parent Model	user

Field Definitions

Field 1: User Type

Attribute	Value
Name	userType
Display Name	User Type
Type	Selection (Static)
Default Value	Institute Admin
Selection Values	Institute Admin:Institute Admin
Value Type	string
Required	✓ Yes
Enable Audit Tracking	✓ Yes
Multi-Select	☐ No

Field 2: Institute Relation

Attribute	Value
Name	institute
Display Name	Institute
Type	Relation
Relation Type	Many-to-One
Related Model	institute
Related Module	fees-portal
Create Inverse	☐ No
Cascade	cascade
Required	☐ No
Enable Audit Tracking	✓ Yes

Quick Reference

For a handy summary of field types and configuration options used in this tutorial, see:

📚 Field Type Reference - Quick-reference table of field types and their key attributes
⚙️ Configuration Notes - Quick tips on relations, cascading, audit tracking, and more

For comprehensive documentation, refer to the Module Builder section.

Generating APIs and UI Components

Once you've created the data models, you'll need to generate the REST APIs and UI components.

Reference Documentation

📋 For detailed step-by-step instructions, see Generating APIs and UI Components

Customizing the UI

After generating the code using SolidX, default list and form views are automatically created for each model. However, these default views often need customization to match your specific business requirements and improve user experience. This section explains how to customize these views using the layout JSON configuration.

To learn how to apply these customizations, see Applying View Customizations.

Institute Form View Customization (Expected Outcome)

Screenshot showing the customized Institute Form View with tabs and organized fields.

1. Tabbed Organization (Notebook with Multiple Pages)

The Institute model has 21 fields covering diverse information types. Displaying all fields on a single page would be overwhelming and difficult to navigate. We organized fields into 5 logical tabs:

Tab	Purpose	Fields Included
Institutes	Core institution information	Name, logo, description, address, brochure, video, hosted page prefix
Payment Gateway Details	Sensitive payment configuration	Merchant ID, access key, access secret, customer user ID
Support	Contact and legal information	Email domain, support email/mobile, GST, privacy policy, FAQs, T&C
Fee Types	Related fee types management	One-to-many relation showing all fee types
Institute Users	User management	One-to-many relation showing all institute admins

Benefits:

Reduces cognitive load by grouping related fields
Separates sensitive payment information from general details
Makes forms easier to navigate and fill out

2. Two-Column Layout for Related Fields

Within the "Institutes" tab, we use a two-column layout:

Left Column (col-6): "Institutes Basic" - Core identity fields (name, description)
Right Column (col-6): "Institutes Contact" - Location and access info (address, hosted page prefix)

Layout JSON Snippet:

{
  "type": "row",
  "attrs": {
    "name": "sheet-1"
  },
  "children": [
    {
      "type": "column",
      "attrs": {
        "name": "group-1",
        "label": "Institutes Basic",
        "className": "col-6"
      },
      "children": [
        {
          "type": "field",
          "attrs": {
            "name": "instituteName"
          }
        },
        {
          "type": "field",
          "attrs": {
            "name": "description"
          }
        }
      ]
    },
    {
      "type": "column",
      "attrs": {
        "name": "group-1",
        "label": "Institutes Contact",
        "className": "col-6"
      },
      "children": [
        {
          "type": "field",
          "attrs": {
            "name": "instituteAddress",
            "disabled": false
          }
        },
        {
          "type": "field",
          "attrs": {
            "name": "hostedPagePrefix"
          }
        },
        {
          "type": "field",
          "attrs": {
            "name": "status",
            "visible": false,
            "disabled": true
          }
        }
      ]
    }
  ]
}

Benefits:

Utilizes screen real estate efficiently
Groups semantically related information
Creates visual balance and structure

3. Full-Width Layout for Media Fields

Logo, brochure, and intro video fields use full-width columns (col-12) with showLabel: false:

{
  "type": "column",
  "attrs": {
    "name": "group-1",
    "label": "Institutes Logo",
    "className": "col-12"
  },
  "children": [
    {
      "type": "field",
      "attrs": {
        "name": "logo",
        "disabled": false,
        "showLabel": false
      }
    }
  ]
}

Benefits:

Media fields need more space for preview/upload UI
Column label serves as the field label, avoiding redundancy
Creates cleaner, less cluttered appearance

4. Hidden Status Field

The status field is hidden and disabled in the form:

{
  "type": "field",
  "attrs": {
    "name": "status",
    "visible": false,
    "disabled": true
  }
}

Rationale:

Status changes are managed through custom action buttons ("Activate Institute", "Deactivate Institute")
Prevents users from manually editing workflow state
Ensures status transitions follow business rules

5. Masked Input for Sensitive Fields

Payment gateway access secret uses custom widgets:

{
  "type": "field",
  "attrs": {
    "name": "paymentGatewayAccessSecret",
    "viewWidget": "maskedShortTextForm",
    "editWidget": "maskedShortTextEdit"
  }
}

Benefits:

Protects sensitive credentials from shoulder surfing
Maintains security while allowing necessary access
Similar to password fields in standard forms

6. Inline Creation for Fee Types

Fee Types relation enables inline creation:

{
  "type": "field",
  "attrs": {
    "name": "feeTypes",
    "inlineCreate": "true",
    "showFieldLabel": false,
    "showLabel": false
  }
}

Benefits:

Users can create fee types directly from institute form
Reduces navigation between different views
Maintains context during data entry
Speeds up initial setup process

7. Custom Action Buttons

Two custom buttons are added to the form:

Activate Institute: Transitions status from InActive to Active
Deactivate Institute: Transitions status from Active to InActive

"formButtons": [
  {
    "attrs": {
      "icon": "pi pi-caret-right",
      "name": "InstituteActivateById",
      "label": "Activate Institute",
      "action": "InstituteActivateById",
      "actionInContextMenu": true,
      "openInPopup": true,
      "visible": false
    }
  }
]

Benefits:

Easily manage institute activation state
Makes actions discoverable in context menu
Provides audit trail for status changes

Complete Institute Form Layout JSON

Below is the complete form layout JSON for the Institute model:

Click to expand the complete JSON layout

{
  "type": "form",
  "attrs": {
    "name": "form-1",
    "label": "Institute",
    "className": "grid",
    "formButtons": [
      {
        "attrs": {
          "icon": "pi pi-caret-right",
          "name": "InstituteActivateById",
          "className": "p-button-text",
          "label": "Activate Institute",
          "action": "InstituteActivateById",
          "customComponentIsSystem": true,
          "actionInContextMenu": true,
          "openInPopup": true,
          "visible": false
        }
      },
      {
        "attrs": {
          "icon": "pi pi-circle-off",
          "name": "InstituteDeactivateById",
          "className": "p-button-text",
          "label": "Deactivate Institute",
          "action": "InstituteDeactivateById",
          "customComponentIsSystem": true,
          "actionInContextMenu": true,
          "openInPopup": true,
          "visible": false
        }
      }
    ]
  },
  "onFormLayoutLoad": "instituteEditHandler",
  "children": [
    {
      "type": "sheet",
      "attrs": {
        "name": "sheet-1"
      },
      "children": [
        {
          "type": "notebook",
          "attrs": {
            "name": "notebook-1"
          },
          "children": [
            {
              "type": "page",
              "attrs": {
                "name": "page-1",
                "label": "Institutes"
              },
              "children": [
                {
                  "type": "row",
                  "attrs": {
                    "name": "sheet-1"
                  },
                  "children": [
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Institutes Basic",
                        "className": "col-6"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "instituteName"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "description"
                          }
                        }
                      ]
                    },
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Institutes Contact",
                        "className": "col-6"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "instituteAddress",
                            "disabled": false
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "hostedPagePrefix"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "status",
                            "visible": false,
                            "disabled": true
                          }
                        }
                      ]
                    },
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Institutes Logo",
                        "className": "col-12"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "logo",
                            "disabled": false,
                            "showLabel": false
                          }
                        }
                      ]
                    },
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Institutes Brochure",
                        "className": "col-12"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "instituteBrochure",
                            "disabled": false,
                            "showLabel": false
                          }
                        }
                      ]
                    },
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Institute Intro Video",
                        "className": "col-12"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "instituteIntroVideo",
                            "disabled": false,
                            "showLabel": false
                          }
                        }
                      ]
                    }
                  ]
                }
              ]
            },
            {
              "type": "page",
              "attrs": {
                "name": "page-2",
                "label": "Payment Gateway Details"
              },
              "children": [
                {
                  "type": "row",
                  "attrs": {
                    "name": "sheet-1"
                  },
                  "children": [
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Payment Gateway Details",
                        "className": "col-6"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "paymentGatewayMerchantId"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "paymentGatewayAccessKey"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "paymentGatewayAccessSecret",
                            "viewWidget": "maskedShortTextForm",
                            "editWidget": "maskedShortTextEdit"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "custUserId"
                          }
                        }
                      ]
                    }
                  ]
                }
              ]
            },
            {
              "type": "page",
              "attrs": {
                "name": "page-4",
                "label": "Support"
              },
              "children": [
                {
                  "type": "row",
                  "attrs": {
                    "name": "sheet-1"
                  },
                  "children": [
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Basic",
                        "className": "col-6"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "emailDomain",
                            "disabled": false
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "supportEmail"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "supportMobile",
                            "disabled": false
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "gst",
                            "disabled": false
                          }
                        }
                      ]
                    },
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Standard Informational",
                        "className": "col-12"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "privacyPolicy",
                            "disabled": false
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "faqs"
                          }
                        },
                        {
                          "type": "field",
                          "attrs": {
                            "name": "tnC",
                            "disabled": false
                          }
                        }
                      ]
                    }
                  ]
                }
              ]
            },
            {
              "type": "page",
              "attrs": {
                "name": "page-5",
                "label": "Fee Types"
              },
              "children": [
                {
                  "type": "row",
                  "attrs": {
                    "name": "sheet-1"
                  },
                  "children": [
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Fee Types",
                        "className": "col-12"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "feeTypes",
                            "inlineCreate": "true",
                            "showFieldLabel": false,
                            "showLabel": false
                          }
                        }
                      ]
                    }
                  ]
                }
              ]
            },
            {
              "type": "page",
              "attrs": {
                "name": "page-6",
                "label": "Institute Users"
              },
              "children": [
                {
                  "type": "row",
                  "attrs": {
                    "name": "sheet-1"
                  },
                  "children": [
                    {
                      "type": "column",
                      "attrs": {
                        "name": "group-1",
                        "label": "Institute Users",
                        "className": "col-12"
                      },
                      "children": [
                        {
                          "type": "field",
                          "attrs": {
                            "name": "instituteUsers",
                            "inlineCreate": "false",
                            "showFieldLabel": false,
                            "showLabel": false
                          }
                        }
                      ]
                    }
                  ]
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

Fee Type Form View Customizations

1. Grouped Fields Layout

Fee Type form organizes fields into three columns:

Column	Label	Width	Fields
Column 1	"Fee Type"	col-6 (half)	Fee type name, part payment allowed
Column 2	"Late Payment"	col-6 (half)	Late payment type, late payment fees
Column 3	"Institute"	col-6 (half)	Institute relation (hidden)

Layout JSON Snippet:

{
  "type": "row",
  "attrs": {
    "name": "sheet-1"
  },
  "children": [
    {
      "type": "column",
      "attrs": {
        "name": "group-1",
        "label": "Fee Type",
        "className": "col-6"
      },
      "children": [
        {
          "type": "field",
          "attrs": {
            "name": "feeType"
          }
        },
        {
          "type": "field",
          "attrs": {
            "name": "partPaymentAllowed"
          }
        }
      ]
    },
    {
      "type": "column",
      "attrs": {
        "name": "group-1",
        "label": "Late Payment",
        "className": "col-6"
      },
      "children": [
        {
          "type": "field",
          "attrs": {
            "name": "latePaymentFeesType"
          }
        },
        {
          "type": "field",
          "attrs": {
            "name": "latePaymentFees"
          }
        }
      ]
    },
    {
      "type": "column",
      "attrs": {
        "name": "group-1",
        "label": "Institute",
        "className": "col-6",
        "visible": false
      },
      "children": [
        {
          "type": "field",
          "attrs": {
            "name": "institute"
          }
        }
      ]
    }
  ]
}

Benefits:

Related payment settings grouped together
Visual separation between core info and payment rules
Efficient use of screen space

2. Hidden Institute Field

The institute relation is hidden (visible: false):

{
  "type": "column",
  "attrs": {
    "name": "group-1",
    "label": "Institute",
    "className": "col-6",
    "visible": false
  }
}

Rationale:

Institute is already known from context (user's current institute)
Automatically set by form handler (feeTypeEditHandler)
Prevents users from accidentally assigning fees to wrong institute
Simplifies form interface

Complete Fee Type Form Layout JSON

Below is the complete form layout JSON for the Fee Type model:

Click to expand the complete JSON layout

{
  "type": "form",
  "attrs": {
    "name": "form-1",
    "label": "Fee Type",
    "className": "grid"
  },
  "onFormLayoutLoad": "feeTypeEditHandler",
  "children": [
    {
      "type": "sheet",
      "attrs": {
        "name": "sheet-1"
      },
      "children": [
        {
          "type": "row",
          "attrs": {
            "name": "sheet-1"
          },
          "children": [
            {
              "type": "column",
              "attrs": {
                "name": "group-1",
                "label": "Fee Type",
                "className": "col-6"
              },
              "children": [
                {
                  "type": "field",
                  "attrs": {
                    "name": "feeType"
                  }
                },
                {
                  "type": "field",
                  "attrs": {
                    "name": "partPaymentAllowed"
                  }
                }
              ]
            },
            {
              "type": "column",
              "attrs": {
                "name": "group-1",
                "label": "Late Payment",
                "className": "col-6"
              },
              "children": [
                {
                  "type": "field",
                  "attrs": {
                    "name": "latePaymentFeesType"
                  }
                },
                {
                  "type": "field",
                  "attrs": {
                    "name": "latePaymentFees"
                  }
                }
              ]
            },
            {
              "type": "column",
              "attrs": {
                "name": "group-1",
                "label": "Institute",
                "className": "col-6",
                "visible": false
              },
              "children": [
                {
                  "type": "field",
                  "attrs": {
                    "name": "institute"
                  }
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

List View Customizations

Role-Based Action Permissions

List views configure which roles can perform specific actions:

"configureViewActions": {
  "import": { "roles": ["Admin"] },
  "showArchived": { "roles": ["Admin"] },
  "export": { "roles": ["Admin", "Mswipe Admin", "Institute Admin"] },
  "customizeLayout": { "roles": ["Admin", "Mswipe Admin", "Institute Admin"] },
  "saveCustomFilter": { "roles": ["Admin"] }
}

Benefits:

Enforces role-based access control at UI level
Reduces clutter by hiding unavailable actions
Improves security by limiting sensitive operations
Provides appropriate capabilities based on user role

General Design Principles

The customizations follow these principles:

Progressive Disclosure: Show essential information first, details in tabs
Contextual Relevance: Hide fields that are auto-populated or irrelevant
Guided Input: Group related fields to guide users through data entry
Security by Design: Mask sensitive data, control access to actions
Efficiency: Enable inline operations to reduce navigation
Consistency: Use similar patterns across related forms

These customizations transform the auto-generated UI into a polished, user-friendly interface tailored to the fees portal domain.

Applying Your Customizations

Now that you have the customized layout JSONs ready, follow the steps in Applying View Customizations to apply them via the Layout Builder.

Data Setup

Follow this order to set up your data and test if the portal is ready for use:

Step 1: Login

Log in to the SolidX platform using Super Admin credentials i.e (sa credentials, created during the initial application setup).

Step 2: Create the Institution

Enter basic details (name, address, contact info)
Upload your logo
Enter payment gateway credentials (from your provider)
Choose a unique subdomain prefix for your payment page

Step 3: Create Institute Admin Users

Add staff members who will manage the portal
Set their role as "Institute Admin"
Link them to the institution created in Step 2
Note the login credentials for these users

Step 5: Login

Institute Admin user logs in using the credentials created in Step 3

Step 6: Add Fee Types

Access the Institute from the Institute listing page
Edit the Institute to add different fee types
List all fee categories you collect (e.g., Tuition, Bus, Hostel)
For each fee type, decide:
- Can students pay in parts?
- Do you charge late fees? If yes, how much?

Congrats! You've successfully onboarded an institution. Now we can move on to creating payment collections and managing student payments.

Overview​

Roles Involved​

Data Models Involved​

1. Institute Model​

Basic Information​

Contact Details​

Payment Gateway Configuration​

Website & Portal Settings​

Legal & Content (Optional)​

What you can do with this model:​

2. Fee Type Model​

Basic Information​

Payment Rules​

Late Payment Policy​

Important Notes:​

Decision Guide:​

3. Institute User Model​

Basic Information​

Role & Access​

Understanding User Roles:​

Who needs access?​

How These Models Connect​

Building the Data Models​

1. Creating the Institute Model​

Model Configuration​

Field Definitions​

2. Creating the Fee Type Model​

Model Configuration​

Field Definitions​

3. Creating the Institute User Model​

Model Configuration​

Field Definitions​

Generating APIs and UI Components​

Customizing the UI​

Institute Form View Customization (Expected Outcome)​

Complete Institute Form Layout JSON​

Fee Type Form View Customizations​

Complete Fee Type Form Layout JSON​

List View Customizations​

General Design Principles​

Data Setup​

Phase 1: Login As Super Admin​

Phase 2: Login As Institute Admin​

Overview

Roles Involved

Data Models Involved

1. Institute Model

Basic Information

Contact Details

Payment Gateway Configuration

Website & Portal Settings

Legal & Content (Optional)

What you can do with this model:

2. Fee Type Model

Basic Information

Payment Rules

Late Payment Policy

Important Notes:

Decision Guide:

3. Institute User Model

Basic Information

Role & Access

Understanding User Roles:

Who needs access?

How These Models Connect

Building the Data Models

1. Creating the Institute Model

Model Configuration

Field Definitions

2. Creating the Fee Type Model

Model Configuration

Field Definitions

3. Creating the Institute User Model

Model Configuration

Field Definitions

Generating APIs and UI Components

Customizing the UI

Institute Form View Customization (Expected Outcome)

Complete Institute Form Layout JSON

Fee Type Form View Customizations

Complete Fee Type Form Layout JSON

List View Customizations

General Design Principles

Data Setup

Phase 1: Login As Super Admin

Phase 2: Login As Institute Admin
